TK-II Stereo Keyboard Replacement

Regular price $50.00 $0.00
Shipping calculated at checkout.

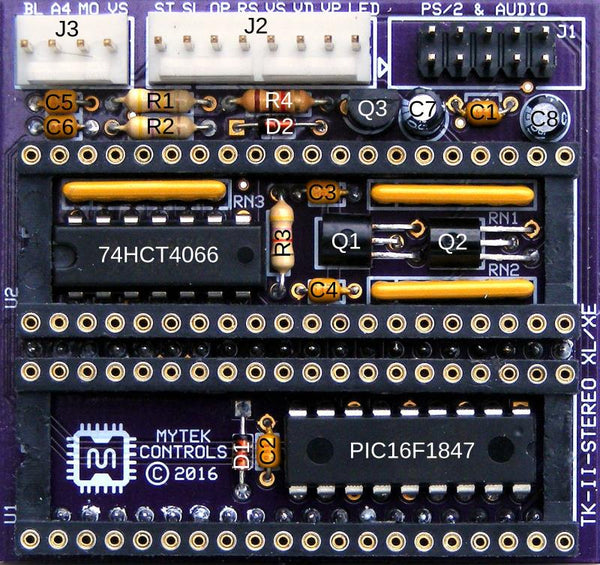

Puts the PS/2 keyboard AND Stereo Pokey in your system!

Ultimate 1M compatible, Requires an additional Pokey chip (available separately or on your own)

Regular interface is a dual keyboard input with 3.5mm stereo. Small interface is the same with a single keyboard input.  Audio output requires amplified speakers or direct connection to an amplifier (with speakers presumedly).

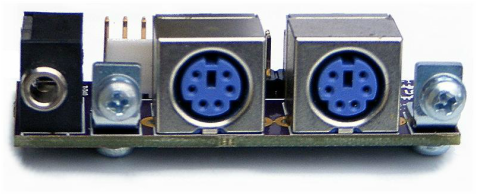

This involves a possible modification to your case.  Look at the connectors pictured.  The "Regular" version is the one with 2 PS/2 connectors.  Either that needs to be routed outside of your case OR you will need to put a hole in your case to fit either one.

Also, if your POKEY is not socketed, it will require you to desolder and solder in a socket (not included).
